EnglishDCS-5F150A | Fully Automatic Brick-shaped Vacuum Packaging Machine
Achieve high-speed, stable, and aesthetically perfect Pouch-Bag packaging with our fully automatic packing machine.
Packaging Finished Product Display

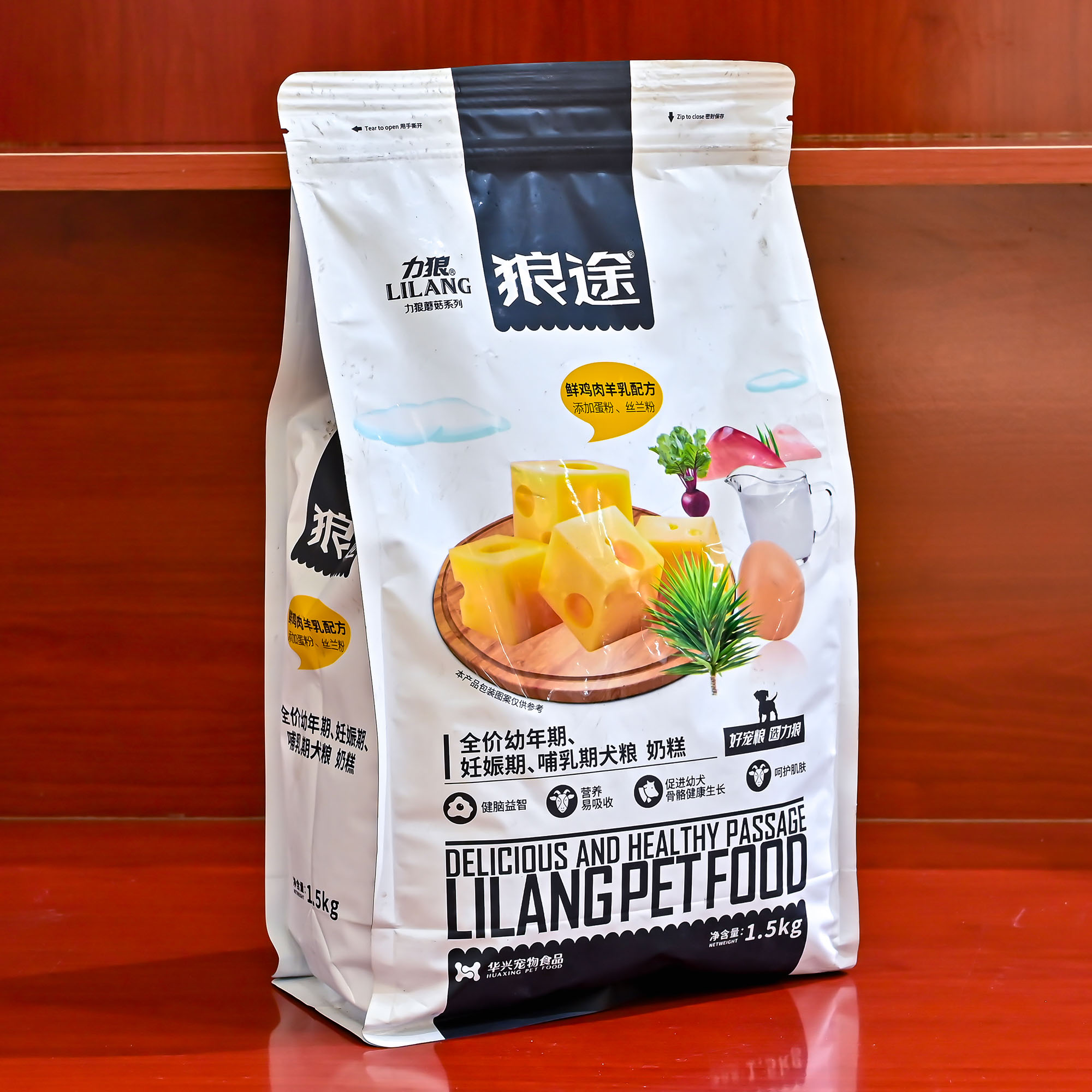

Stand-up pouch bag finished product

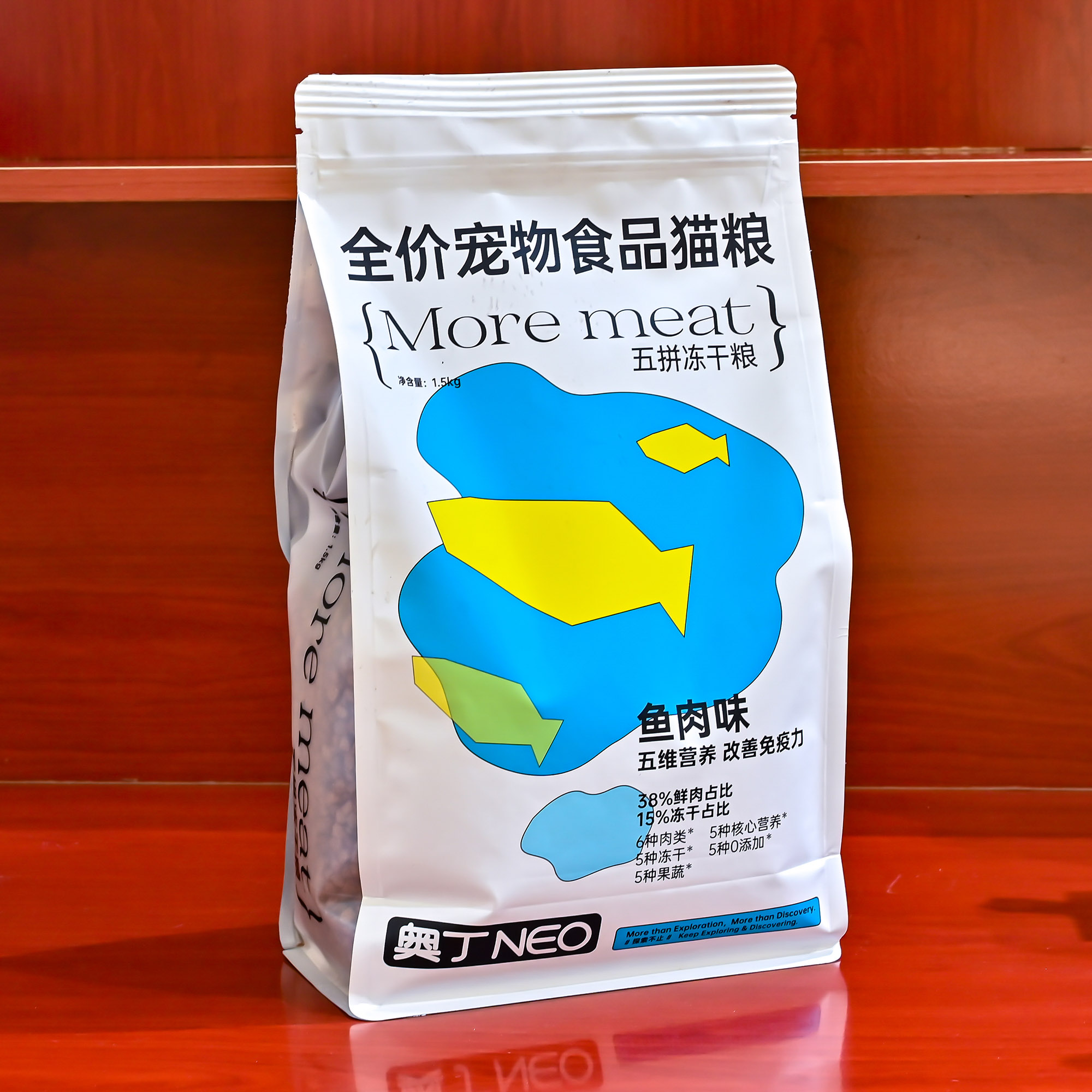

Stand-up pouch bag finished product
Features
01
Fully automatic
Automatic bagging, bagging, metering, filling, vacuum (shaping), finished product packaging output, realizing unmanned packaging process
02
Large packaging range
Broad compatibility with multiple bag types and dimensions.
03
Parameter‑Click Switch
The device can save parameter groups, switch specifications with one click, and automatically adjust the device
04
Four‑Servo Four‑Stations
Efficient packaging with two workstations, powered by servo motors for precise and stable operation
05
Multi‑scale design:
Equipped with multiple weighing scales to meet the blending needs of pet food (including freeze‑dried ingredients) and cat litter.
Technical Specifications

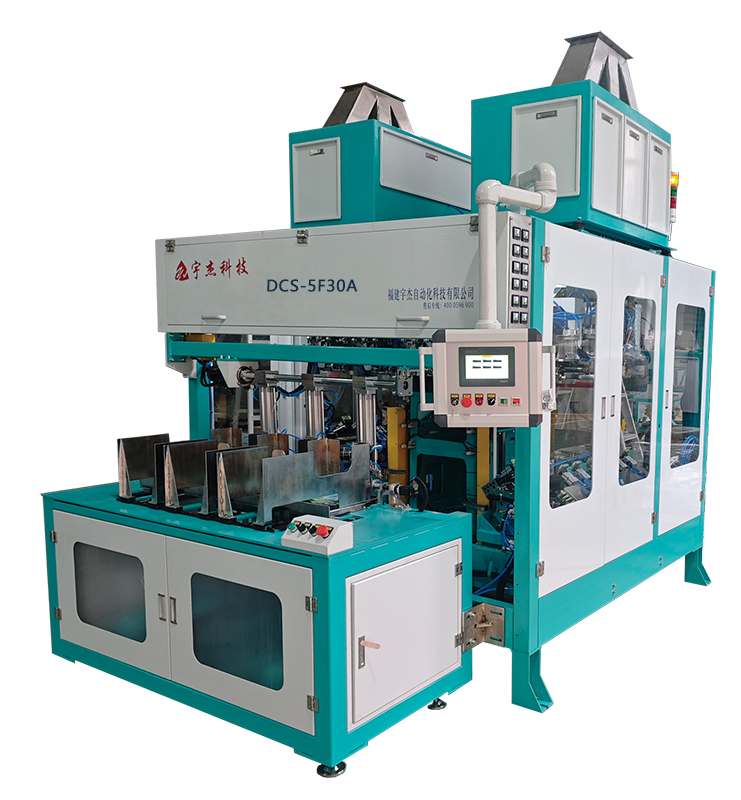

DCS-5F30A | Fully Automatic Pouch-bag/Three-sided seal bag Packaging Machine
Specification | Parameter |
| Packing range | 1~5kg |
| Packing speed | 50 bags/min |
| Packaging error | 2~5g |
| Power consumption | AC380V 50HZ 6kw |
| Air source requirements | 0.8mpa 25m3/h |

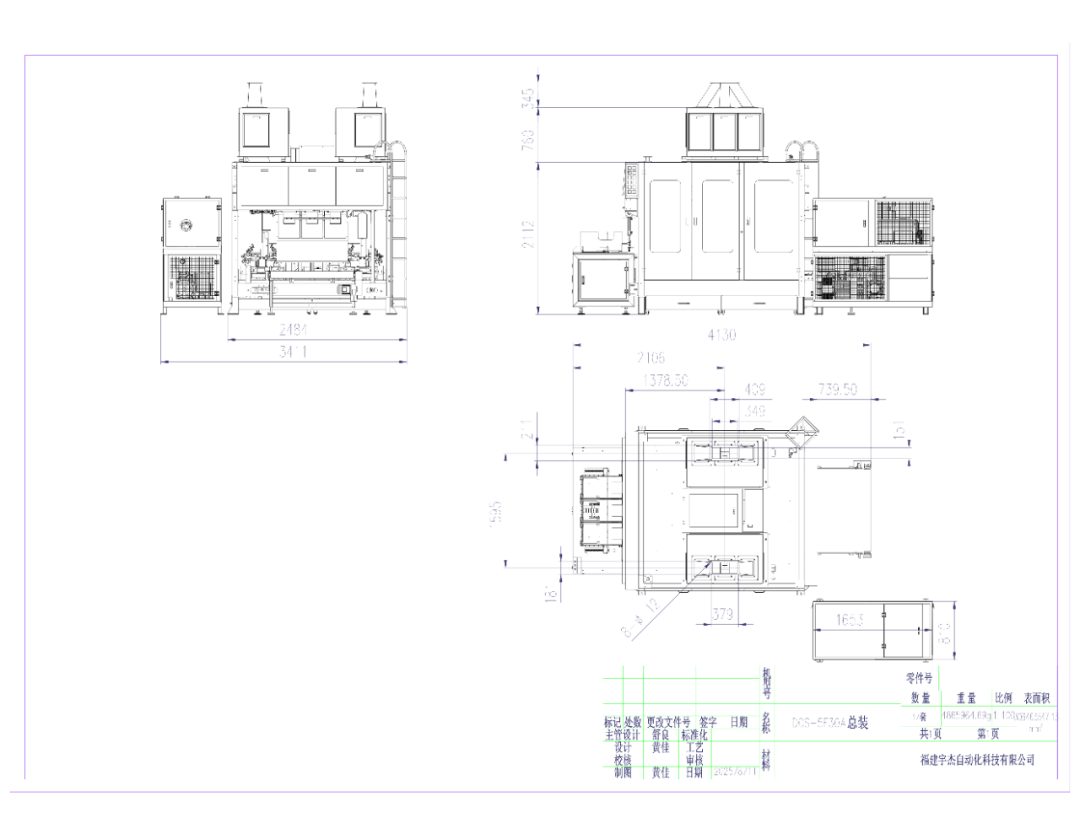

| Dimensions | length 4130* width 3400* height 3220 (mm) |
Product Main Component Configuration
| No. | Component Name | Main Configuration |
| 1 | Programmable Logic Controller (PLC) | Siemens (Germany) |
| 2 | Expansion Module | Siemens (Germany) |
| 3 | Touch Screen | Beijer (Sweden) |
| 4 | Terminal Block | Phoenix Contact (Germany) |
| 5 | Circuit Breaker | Schneider (France) |
| 6 | Contactor | Schneider (France), Siemens (Germany) |
| 7 | Push Button Switch | Schneider (France) |
| 8 | Servo Drive | Delta (Taiwan) |
| 9 | Switching Power Supply | Mean Well (Taiwan) |
| 10 | Electronic Vacuum Gauge | KITA(Taiwan) |
| 11 | Temperature Controller | Omron (Japan) |
| 12 | Proximity Sensor | Schneider (France) |
| 13 | Pneumatic Components | Airtac (Taiwan) |
| 14 | Vacuum Pump | Becker (Germany) |
| 15 | Weighing Module | General measure(China) |
