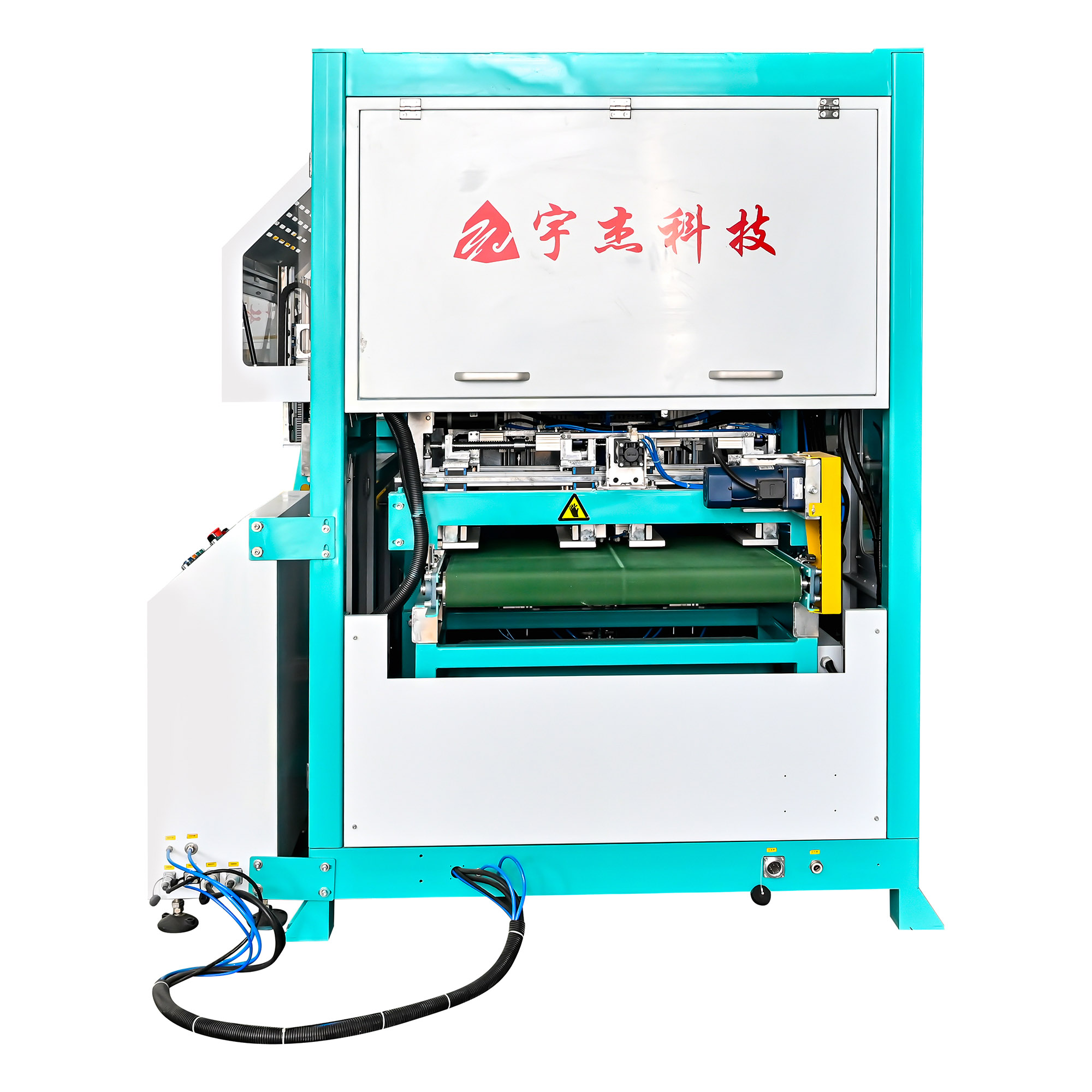

EnglishTD-150A | Bag-in-Bag Packaging Machine
Achieve high-speed, stable second packaging with our fully-automatic bag-in-bag packaging machines.

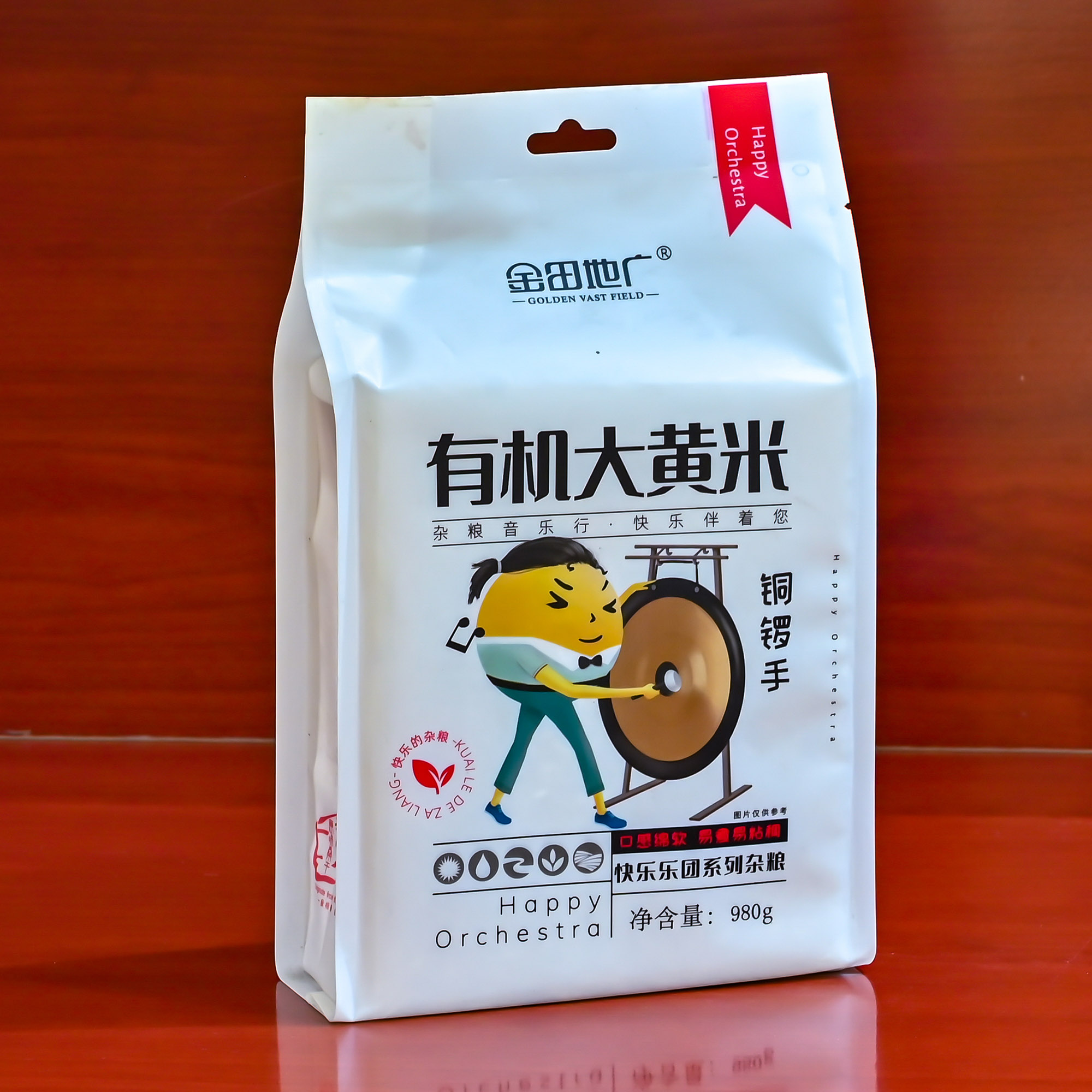

Packaging Finished Product Display
Bag-in-bag packed vacuum rice brick
Bag-in-bag packed vacuum rice brick
Features
01
Product Loading into Cartons:
Fully-Automatically loads products into cardboard boxes as required.
02

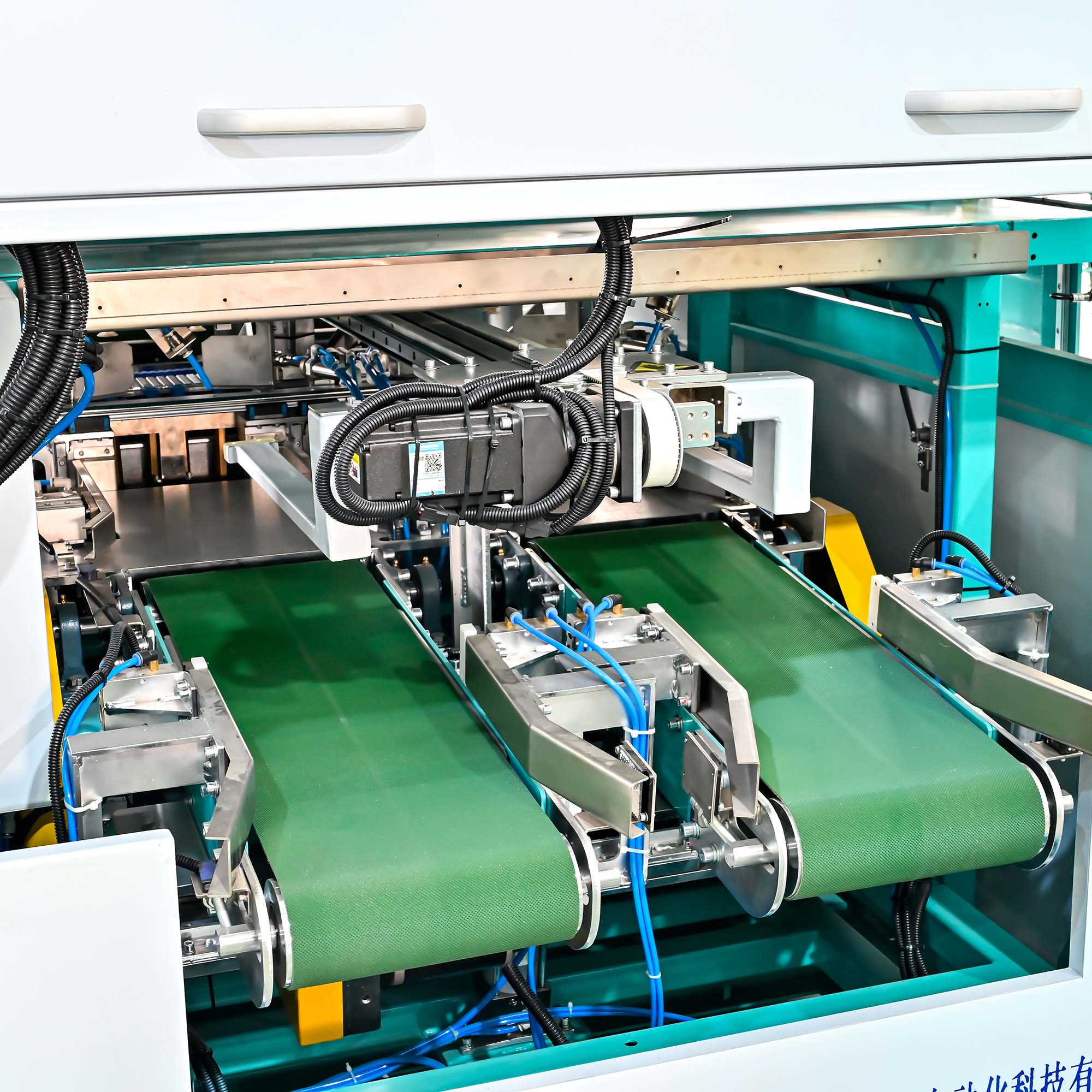

High‑Efficiency Dual‑Station Design:
Dual‑station operation delivers fast cartoning speed – achieving double the output.
03
Parameter‑Click Switch
The device can save parameter groups, switch specifications with one click, and automatically adjust the device
04
Servo Positioning System:
Fast movement, low operating noise, and precise positioning.
05
User‑Friendly Operation:
English display touchscreen with Siemens programmable controller for simple and intuitive control.
Technical Specifications
TD-150A | Bag-in-Bag Packaging Machine
Specification | Parameter |
| Packing range | 0.3-5.0kg (with size requiments) |
| Packing speed | 1200-1600 packages/h |
| Size of the brick bag | W; 87-247 H:30-95 L: 280-530(mm) |
| Power consumption | AC380V 50HZ 4.5kw |
| Air source requirements | 0.6mpa 12m3/h |
| Dimensions | length 3300* width 1835* height 2110 (mm) |
Main components configuration
| No. | Component Name | Brand/Manufacturer |
|---|---|---|
| 1 | Programmable Logic Controller (PLC) | Siemens (Germany) |
| 2 | Expansion Module | Siemens (Germany) |
| 3 | Touch Screen | Beijer (Sweden) |
| 4 | Servo Drive | Delta (Taiwan) |
| 5 | Electric Cylinder | Zolay (China) |
| 6 | Electric Linear Actuator | Huifeng (China) |
| 7 | Switching Power Supply | Mean Well (Taiwan) |
| 8 | Terminal Block | Phoenix Contact (Germany) |
| 9 | Circuit Breaker & Contactor | Schneider (France) |
| 10 | Push Button Switch | Schneider (France) |
| 11 | Proximity Sensor | Schneider (France) |
| 12 | Pneumatic Components | Airtac (Taiwan) |
| 13 | Weighing Control Module | German Tech (China) |
| 14 | Vacuum Pump | Becker (Germany) |
| 15 | Temperature Controller | Omron (Japan) |
| 16 | Electronic Vacuum Gauge | Kingdon (Taiwan) |
