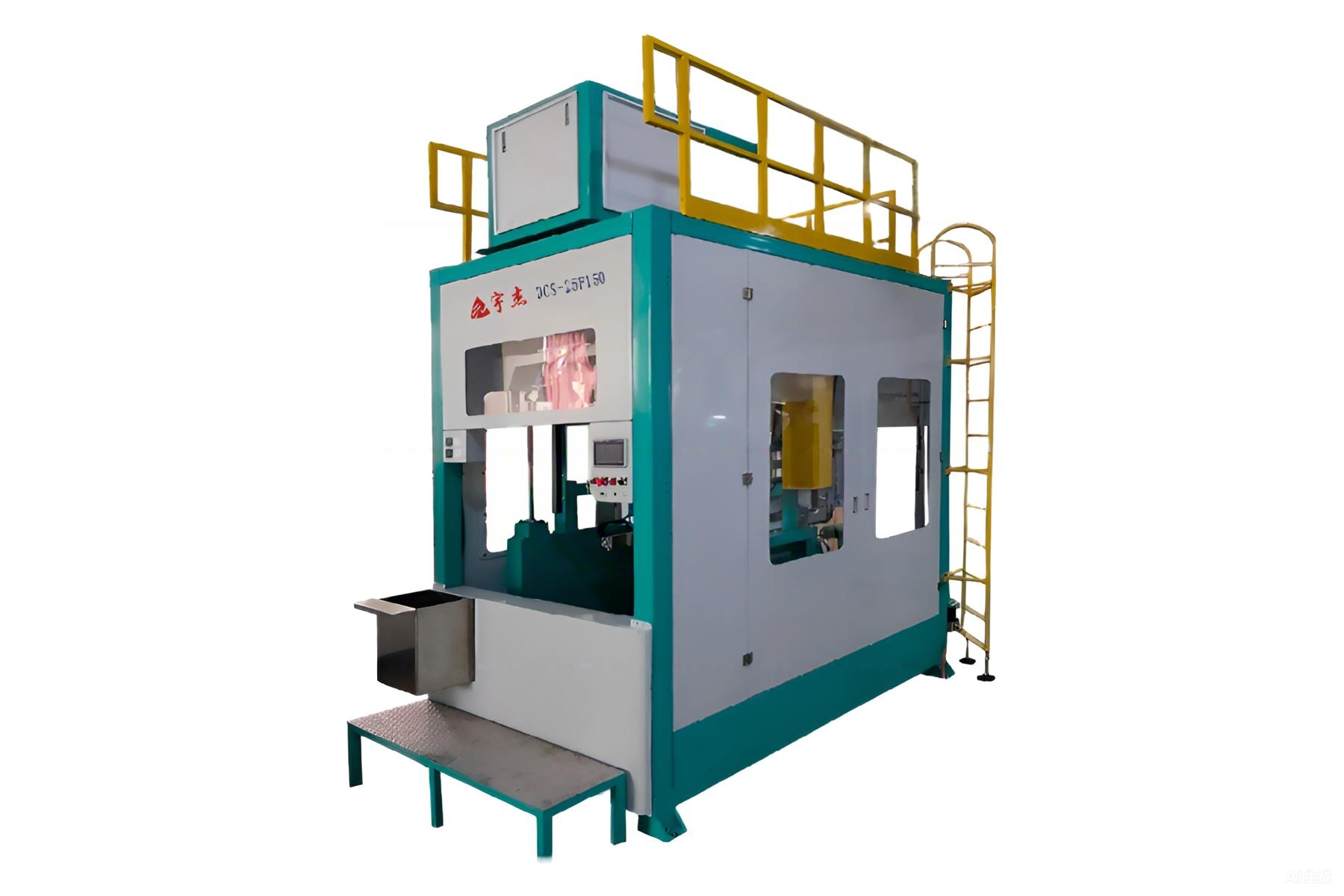

EnglishDCS-25F150 | Semi-Automatic Brick-shaped Vacuum Packaging Machine for 5-25kg
Achieve high-speed, stable, and aesthetically perfect vacuum packaging with our Semi-automatic six-side (brick-type) machine.
Packaging Finished Product Display
Nut six sided packaging
Six sided packaging of
melon seeds
Melon seed six sided packaging
Peanut six sided packaging
Features
01
Semi-automatic
Automatic metering, filling, vacuum (shaping), finished product packaging output, only one operator required for bag loading.
02
Large packaging range
Designed for large-bag vacuum packaging, accommodates a wide weight range of 5–25 kg, making it ideal for most granular materials.
03
Parameter‑Click Switch
The device can save parameter groups, switch specifications with one click, and automatically adjust the device
04
Servo powered movements
Efficient packaging with one workstations, powered by servo motors for precise and stable operation
05
Tri‑Stage Precision Scale
The scale body adopts a three-level feeding mode, with fast speed and high accuracy
Technical Specifications
DCS-5F350A | Fully Automatic Brick-shaped Vacuum Packaging Machine
宽80-235 长度130-335 厚度 30-80
Specification | Parameter |
| Packing range | 5kg~25kg |
| Packing speed | 150-200 packages/hour |
| Packaging error | 2~5g |
| Finished Brick-pack size range | Width: 220-350 Length: 300-530 Height: 100-240 |
| Power consumption | AC380V 50HZ 9kw |
| Air source requirements | 0.6mpa 8m3/h |
| Dimensions | length 1917* width 4048* height 3867 (mm) |
| Vacuum degree (MPa) | -0.07-0 (adjustable) |
| No. | Component Name | Brand/Manufacturer |
|---|---|---|
| 1 | PLC (Programmable Logic Controller) | Siemens (Germany) |
| 2 | Expansion Module | Siemens (Germany) |
| 3 | HMI Touch Panel | Beijer (Sweden) |
| 4 | Servo Drive | Delta (Taiwan) |
| 5 | Electric Cylinder | Inovance (China) |
| 6 | Switching Power Supply | Mean Well (Taiwan) |
| 7 | Terminal Blocks | Phoenix Contact (Germany) |
| 8 | Circuit Breaker/Contactor | Schneider (France) |
| 9 | Push Button Switch | Schneider (France) |
| 10 | Proximity Sensor | Schneider (France) |
| 11 | Pneumatic Components | Airtac (Taiwan) |
| 12 | Weighing Control Module | Germen Tech |
| 13 | Vacuum Pump | Becker (Germany) |
| 14 | Temperature Controller | Omron (Japan) |
| 15 | Electronic Vacuum Gauge | Kingdon (Taiwan) |
