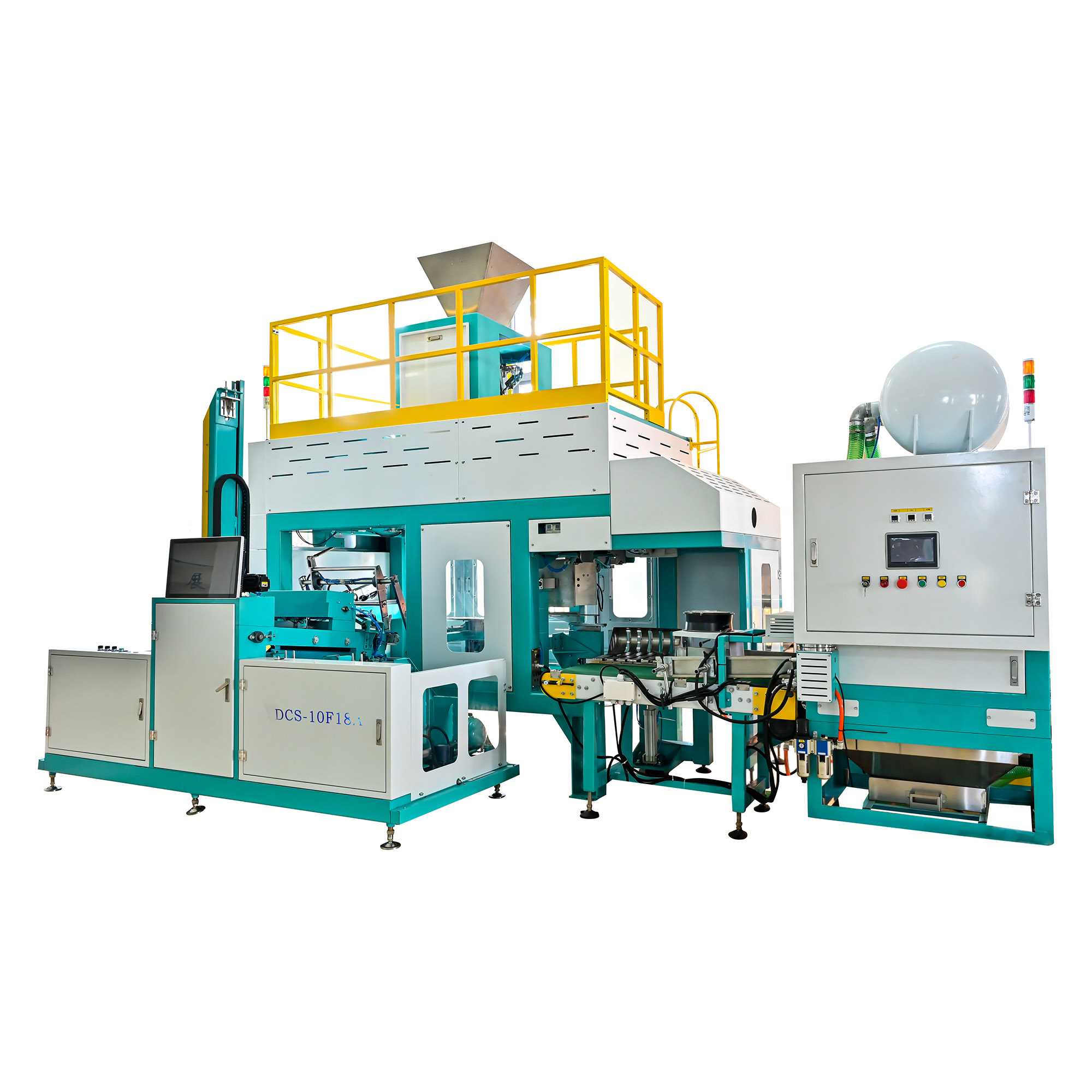

EnglishDCS-10F18A | Fully Automatic Pillow-shaped Vacuum Packaging Machine
Achieve high-speed, stable, and aesthetically perfect vacuum packaging with our fully automatic Vacuum packing machine.
Packaging Finished Product Display
Nut six sided packaging
Six sided packaging of
melon seeds
Melon seed six sided packaging
Peanut six sided packaging
Rice brick-shaped vacuum packaging
Features
01
Fully automatic
Automatic bagging, bagging, metering, filling, vacuum (shaping), finished product packaging output, realizing unmanned packaging process
02
Large packaging range
A shaping mechanism with a wide capacity of 2.5G~5KG, suitable for packaging in thick and thin shapes
03
Parameter‑Click Switch
The device can save parameter groups, switch specifications with one click, and automatically adjust the device
04
Dual‑Servo Four‑Stations
Efficient packaging with four workstations, powered by servo motors for precise and stable operation
05

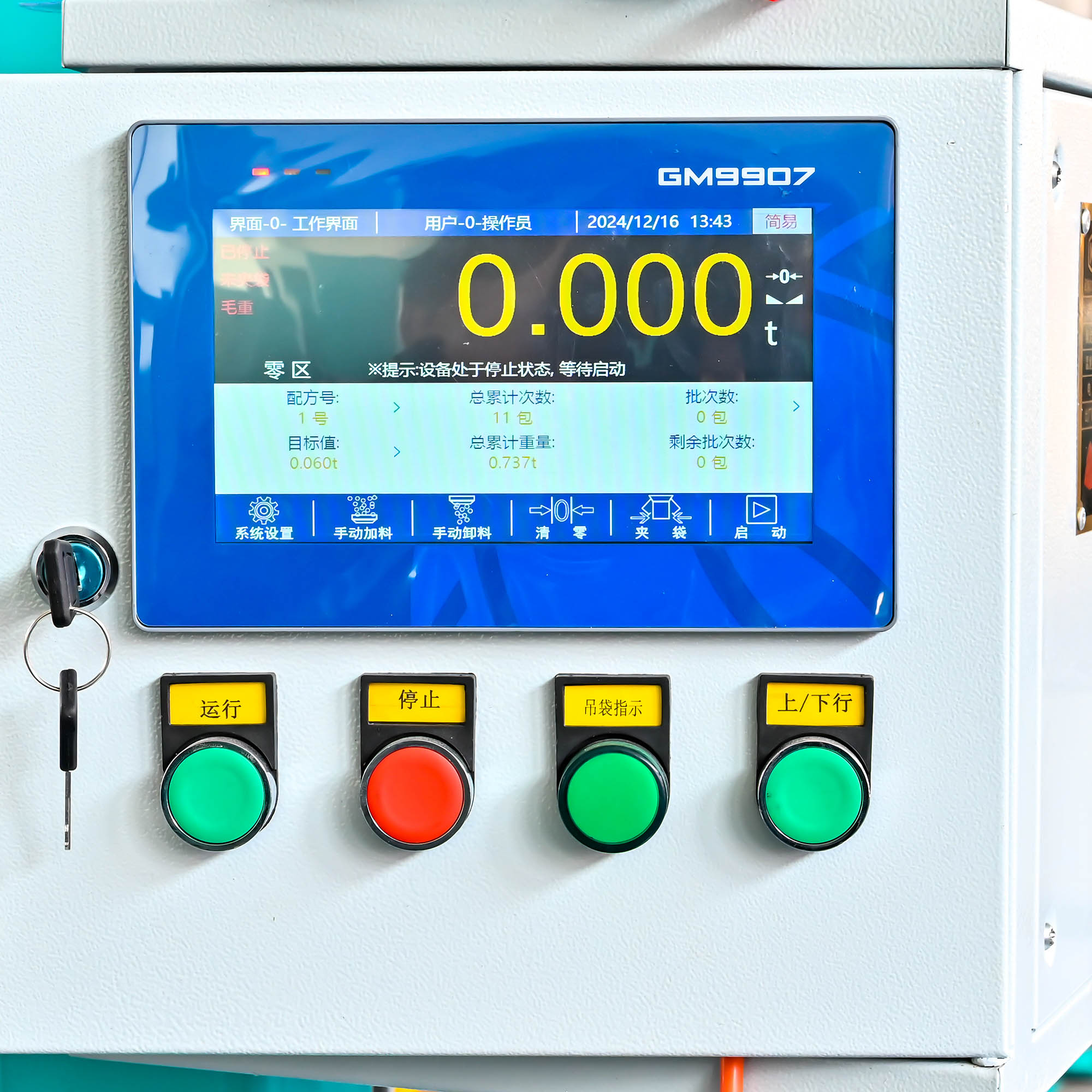

Tri‑Stage Precision Scale
The scale body adopts a three-level feeding mode, with fast speed and high accuracy
Technical Specifications
DCS-5F90A | Fully Automatic Six Sided Shaping Vacuum Packaging Machine
Specification | Parameter |
| Packing range | 2.5~10kg（Rice） |
| Packing speed | 800-1000 packages/h |
| Packaging error | 2~5g |
| Power consumption | AC380V 50HZ 6kw |
| Air source requirements | 0.8mpa 25m3/h |

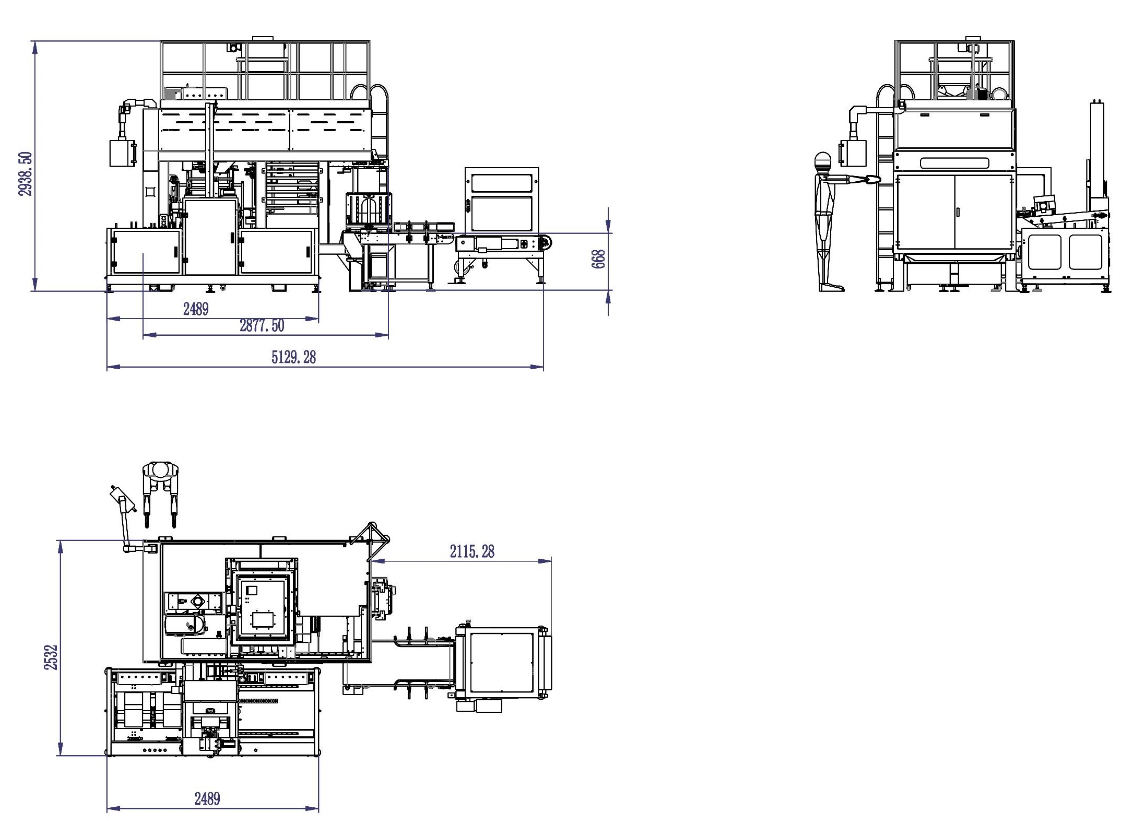

| Dimensions | length 5130* width 2532* height 2950 (mm) |
| Vacuum degree (MPa) | -0.07-0 (adjustable) |
Main components configuration
| No. | Component Name | Brand/Manufacturer |
|---|---|---|
| 1 | Programmable Logic Controller (PLC) | Siemens (Germany) |
| 2 | Expansion Module | Siemens (Germany) |
| 3 | Touch Screen | Beijer (Sweden) |
| 4 | Servo Drive | Delta (Taiwan) |
| 5 | Electric Cylinder | Zolay (China) |
| 6 | Electric Linear Actuator | Huifeng (China) |
| 7 | Switching Power Supply | Mean Well (Taiwan) |
| 8 | Terminal Block | Phoenix Contact (Germany) |
| 9 | Circuit Breaker & Contactor | Schneider (France) |
| 10 | Push Button Switch | Schneider (France) |
| 11 | Proximity Sensor | Schneider (France) |
| 12 | Pneumatic Components | Airtac (Taiwan) |
| 13 | Weighing Control Module | German Tech (China) |
| 14 | Vacuum Pump | Becker (Germany) |
| 15 | Temperature Controller | Omron (Japan) |
| 16 | Electronic Vacuum Gauge | Kingdon (Taiwan) |
Related Application Scenarios
Rich product system that can be applied to various industry scenarios
-
The rice packagingThe rice packaging industry is rapidly transitioning from manual operations to automation and intelligence. Facing multiple needs including moisture prevention, freshness preservation, efficiency improvement, and cost control, intelligent packaging systems have become key to industry upgrading. -
The coarse grain packagingThe coarse grain packaging sector faces challenges including small batch sizes, multiple varieties, and high-frequency production. Yujie's smart packaging system provides tailored solutions with precise weighing, rapid changeover, and high-efficiency packaging. This helps producers maintain freshness while meeting market demand for diverse and convenient packaging formats.
